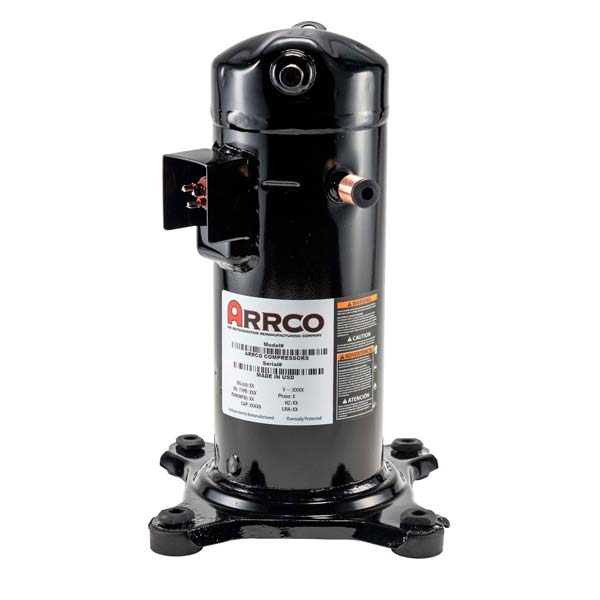

AA20K5P-BFV

Performance

• Discharge/Suction Temperature:
  50/100
  45/130
• RG./Liq (Fahrenheit):
  70/85
  65/115
• BTUs per hour:
  27300
  20000
• Watts:
  1330
  2040
• Current/Amps:
  6.1
  9.1

Dimensions

• Mounting Length/Width (in):
  7.5
• Mounting Height (in):
  16.02
• Overall Length/Width (in):
  9.56
• Overall Height (in):
  15.27
• Net Weight (Lbs):
  47.4

Electrical Information

• LRA (Locked Rotor Amps):
  58.3
• MCC (Amps):
  21
• Max Operating Current:
  11.5
• Run Load Amps Contactor:
  8.2
• Run Load Amps Breaker & Wire:
  7.4
• Run Capacitor (MFD):
  See Product Label
• Run Capacitor Voltage:
  370/440
• Start Capacitor (MFD):
  88
• Start Capacitor Voltage:
  330

Additional Information

• Oil Charge:
  25
• Oil Recharge:
  21
• Discharge (in):
  1/2 STUB
• Suction (in):
  3/4 STUB
• Cross Reference Numbers:
  100040-02, 101995-02, 10T60, 113ANA024, 113ANW024, 114ANA024, 114CNA024, 116BNA024, 123ANA024, 13ACX024230, 13AJL24A01, 13AJM24A01, 13AJN24A01, 13HPP24AP, 13HPX024230, 13PJL24A01, 14ACX024230, 14ACXS024230, 14AJL24A01, 14AJM24A01, 14AJM25A01, 14HPX024230, 14PJM24A01, 15PJL24A01, 213ANA024, 213ANA024000, 213BNA024, 213BNA024000, 213BNW024, 213BNW024000, 215BNA024, 223ANA024000, 24ABA324A00300, 24ABB324A00310, 24ABC624A00300, 24ACC424A00300, 25HBA324A300, 25HBB324A00300, 25HBC324A00300, 25HBC524A00300, 25HCA324A00300, 25HCE424A00300, 38EYG024, 38EZA024, 38EZG024, 38TXA024, 38YDB024, 48ES-024060311, 4AC13B24P, 4AC13L24P, 4AC14B24P, 4AC14L24P, 4HP13B24P, 4HP13L24P, 4HP14B24P, 4HP14L24P, 4SHP13LB124P, 4SHP13LE124P, 4SHP14LB124P, 4SHP14LE124P, 4TTR2024A1000AA, 4TTR4024L1000BA, 4TTR4025L1000BA, 4TWB4024G1000BA, 4TWR2024A1000AA, 4TWR3024A1000AA, 4TWR3024B1000AA, 4TWX6024E1000AA, 4TWZ0024A1000AC, 55-102045-01S, 55-102045-104S, 55-102045-148S, 55-102045-24S, 550ANX024, 550ANX024000AAAA, 622437R, 622624R, 622706, 650ANX024000, 663GJX024000, 918561, 918868, 919606, 921422, 921423, 97M53, ANX130241AA, ANX130241AB, APA020KA, APA020KAA, APA022K, APB020KA, APB020KAA, APG020KA, APG1324045M41CA, APG1324070M41CA, ASX130241, ASX140241, ASX140251, ASX160241, ASZ140241, CA16NA02400, CH13NA02400, CH14NA02400, CH14NB02400, COM07336, COM07337, COM08454, COM09279, COM09525, COM09698, COM10014, COM10522, COM11524, CSH4BD024K, CXA624GKA100, CXH524GKA100, DP19A-YY1-LB, DP19A-YZ1-A, DP20A-YZ1-LC, DP20A-ZZ1-A, DP22A-ZZ1-KA, DS4QD024KC, DT4BD024K, ES4BD024K, ES6BF024K, ET4BD024K, ET4BE024K, FB4CNP024L00AAAA, FS4BC024K, FT4BD024K, FT4BE024K, GPG1324045M41CA, GPG1324070M41CA, GPH1324H41, GPH1424H41, GR8GD024K072C, GSX130241AB, GSX130241BA, GSX130241DA, GSX140241KA, GSX140251KA, GSX160241FA, GSZ130241AB, GSZ130241AC, GSZ130241BA, GSZ130241BB, GSZ130241BC, GSZ130241BD, GSZ130241CA, GSZ130241CB, GSZ140241K, H80J183ABC, H80J223ABC, H81J223ABC, H81J22BABC, H82J193ABC, H82J19BABC, H82J213ABC, H82J21BABC, H82J223ABC, H82J22BABC, H83B193ABC, H84B183ABCA, H89B193ABC, H89B19BABC, H89B223ABC, H89B22BABC, JS4BD024KA, JS4BE024KA, JS6BD024K, JS6BF024K, JS6QD024KA, JT4BD024K, JT4BE024, ML14XC1S024, N4A324AKB200, N4A324AKC100, N4H324AKA200, N4H324CKA100, N4H424AKB200, NS4BD024K, NT4BE024K, NT4QD024K, NXH524GKA100, P021-21210P, P02121210P, P032-1926, P7RD024KA, PA14NC024000AAAA, PH13NA024000, PH14NB024000, PH15NB024000, PHD324000K000C1, PHJ324000K000, PSH4BD024K, PY3GNAA24060NA, Q5RD024K, Q7RE024K, R4A324AKA200, R4H324GKB100, RA1424AJ1NA, RA1624AJ1NA, RANL024JAZ, RAPL024J, RP1424AJ1NA, RP1424FJ1NA, RPH13410A24J, RPNL024JAZ, RPQL024J, RQPWB024J, RQPWB025J, S1-01504141004, S1-01504781001, S101504076004, S101504141004, S101504781001, SBA020CICPZ, SSX140241, SSZ140241, SSZ160241, SXA016C1BPZ, T81J195CBC, T89B194CBC, TCJD24S41S3A, THJR24S41, TPA020B1RPZ, UANL024JAZ, VR8GD024K072C, VS4BD024KB, VSX130241, VSZ130241, VT4BD024K, VT4BE024K, WJH324000KTP0A1, XC13024230, XC14024230, YCE24B21HA, YCJD24S41S1A, YHE24B21SA, YHJF24S41S1A, ZP20K3E-PFV, ZP20K3E-PFV-130, ZP20K3E-PFV-230, ZP20K3E-PFV-250, ZP20K3E-PFV-800, ZP20K3E-PFV-830, ZP20K3E-PFV-930, ZP20K3E-PFV-950, ZP20K4E-PFV, ZP20K4E-PFV-130, ZP20K4E-PFV-230, ZP20K4E-PFV-250, ZP20K4E-PFV-800, ZP20K4E-PFV-830, ZP20K4E-PFV-930, ZP20K4E-PFV-950, ZP20K5E-PFV, ZP20K5E-PFV-130, ZP20K5E-PFV-230, ZP20K5E-PFV-250, ZP20K5E-PFV-800, ZP20K5E-PFV-830, ZP20K5E-PFV-930, ZP20K5E-PFV-950, ZP20K6E-PFV, ZP20K6E-PFV-130, ZP20K6E-PFV-230, ZP20K6E-PFV-250, ZP20K6E-PFV-800, ZP20K6E-PFV-830, ZP20K6E-PFV-930, ZP20K6E-PFV-950, ZP20KAE-PFV-130, ZP20KAE-PFV-230, ZP20KAE-PFV-250, ZP20KAE-PFV-800, ZP20KAE-PFV-830, ZP20KAE-PFV-930, ZP20KAE-PFV-950, ZP21K5E-PFV, ZP22KCE-PFV
